Falling Head Permeability Set

Product Code

The UTS-1320 Falling Head Permeability Set is used to study the behaviour of soil, particularly finegrained soils such as clay-like or silty soils, with respect to water flow.

The UTS-1322 Falling Head Permeability Cell is manufactured from plated steel with an inside diameter of 100 mm.

The UTS-1324 Wooden Stand is fitted with 4 glass Manometer Tubes of each 1500 mm long with inside diameters of about 21 mm, 12 mm, 5 mm and 3.5 mm. All tubes have connection valves.

The UTS-1326 Soaking Reservoir Tank is manufactured from plated steel with an over-flow tube and is used for containing the permeability cell during the test.

Optional Equipment For De-Airing Water should be ordered separately.

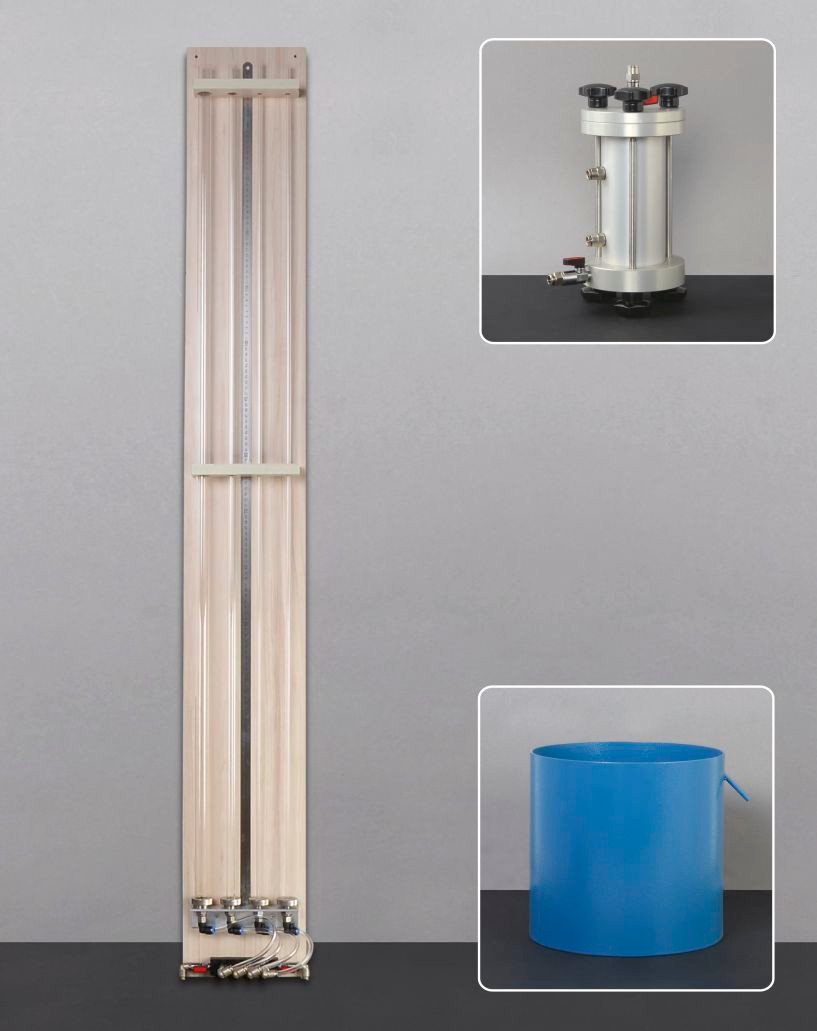

The UTS-1320 Falling Head Permeability Set is supplied complete with;

• Ø 100 mm Falling Head Permeability Cell
• Wooden Stand with 4 manometer tubes
• Soaking Reservoir Tank
• 3 m Hose (UTGP-1440)


       UTS-3505          UTGG-2015/UTGP1140        UTS-1330                  UTS-1326                     UTS-1322                   UTGE-3580

                                                Falling Head Permeability Test with De-Airing Water System
