Automatic Grinding Machine with Cabinet

Product Code

Standards

EN 12390-1, 12390-2, 12390-3, 12504-1; ASTM C 31, C39, C42, D4543

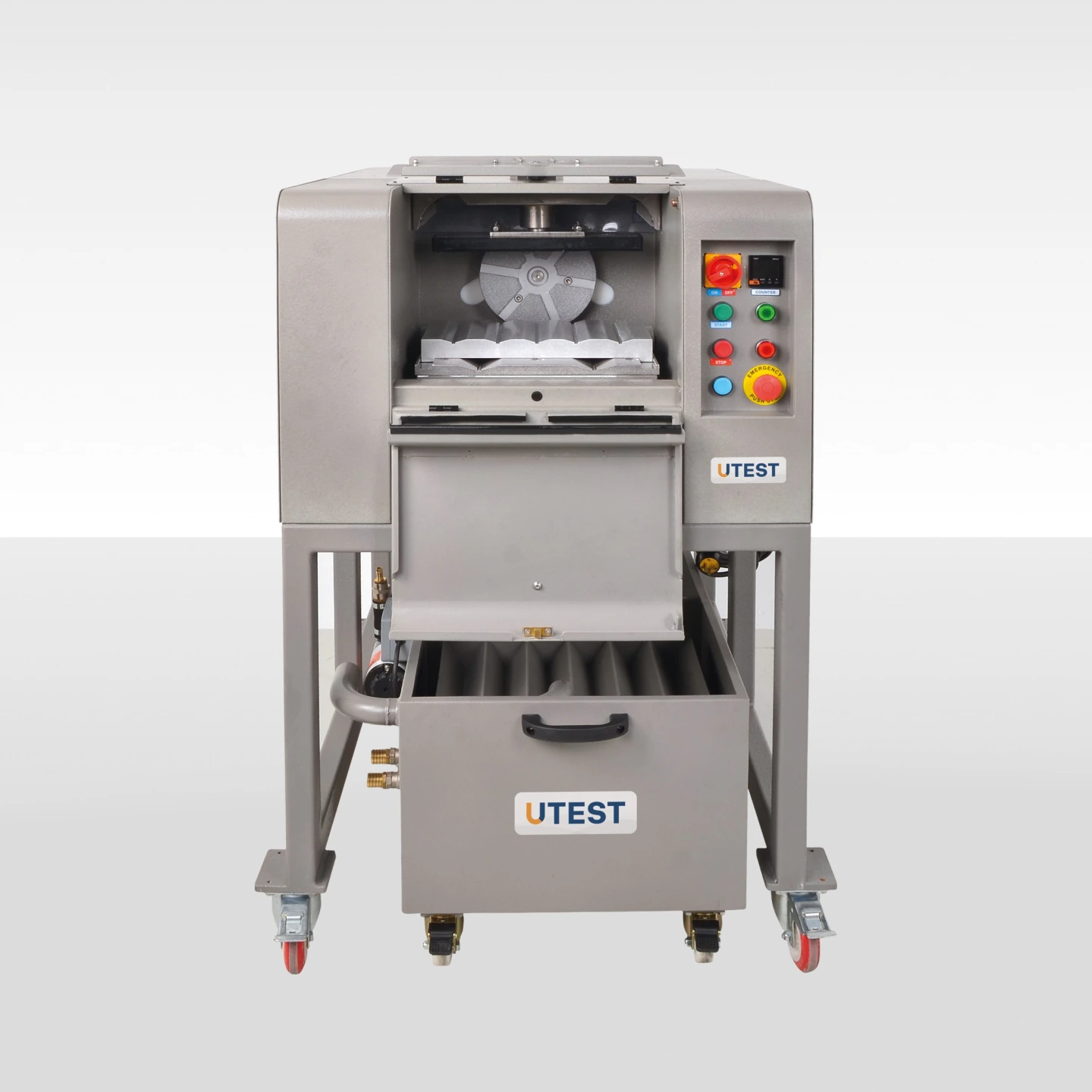

The UTC-1060 Automatic Grinding Machine with Cabinet provides fast grinding of concrete, rock, natural stone. etc. specimens to obtain plane and parallel surfaces according to EN and ASTM standards.

Three units of Ø70mm to Ø110 mm and iki adet  Ø110mm to Ø160mm cylinders specimen can be grind with the machine.

And also  with the cradles supplied separately

• Three units of Ø38 mm to Ø70 mm cylinders (UTC-1066)
• Three units of 50mm to 110 mm cubes (UTC-1067),
• One unit of 150 mm cubes (UTC-1069).

specimen can be ground simultaneously. The lenght of the any specimen must be ≥50 mm.

According to ASTM and EN standards, the planeness accuracy of grinded surfaces of concrete compression test specimens should be 0.05 mm. and also the deviation of perpendicularity of the side with reference to the end faces should be 0,5°.

The equipment has selectable advance grinding time functionality by user as seconds. Optimum grinding time per end of all type specimens is 90 to 120 seconds.

The specimens fixed to the any cradle are abraded by the grinding wheel which has bidirectional radial displacement ability.

The safe and ergonomic design prevents the user to exposure to water and dust and provides easy access to the water inlet and outlet.Specimen cradles can easily be installed without the need for any assembly.

Mobility of the machine is achieved with the help of the integral wheels, and all components of the system can be safely accessed for easy maintenance.

The parts exposed to water are made of stainless steel to resist corrosion.

UTC-1064 Filtration and Circulation System Water Tank with 100 liter is designed to save the amount of water used during the grinding process in the automatic grinding machine(UTC-1060).If UTC-1064 is supplied with the grinding machine, it is automatically activated when the grinding process starts and filtration and circulation begin simultaneously.

Water tank with filtration and circulation system (UTC-1064) which should be oredered separately, is designed to save the amount of water used during the grinding process in the automatic grinding machines.

The cradle for 50mm or 100mm or 150mm cube specimens should be ordered seperately.

The cradle/s  for

• Ø38 mm to Ø70 mm cylinder (UTC-1066),
• 50 mm to 110 mm cube (UTC-1067),
• 150 mm cube (UTC-1069),

specimens should be ordered seperately.

The Automatic Grinding Machine is supplied complete with;

• Grinding Wheel for concrete specimens
• Cradle for Ø70mm to Ø110 mm cylindrical specimens
• Cradle for Ø110mm to Ø160 mm cylindrical specimens (connected to the machine)
