Hoek Triaxial Cell

Bizimle İletişime Geçin

Katalog Talep Edin

Product Code

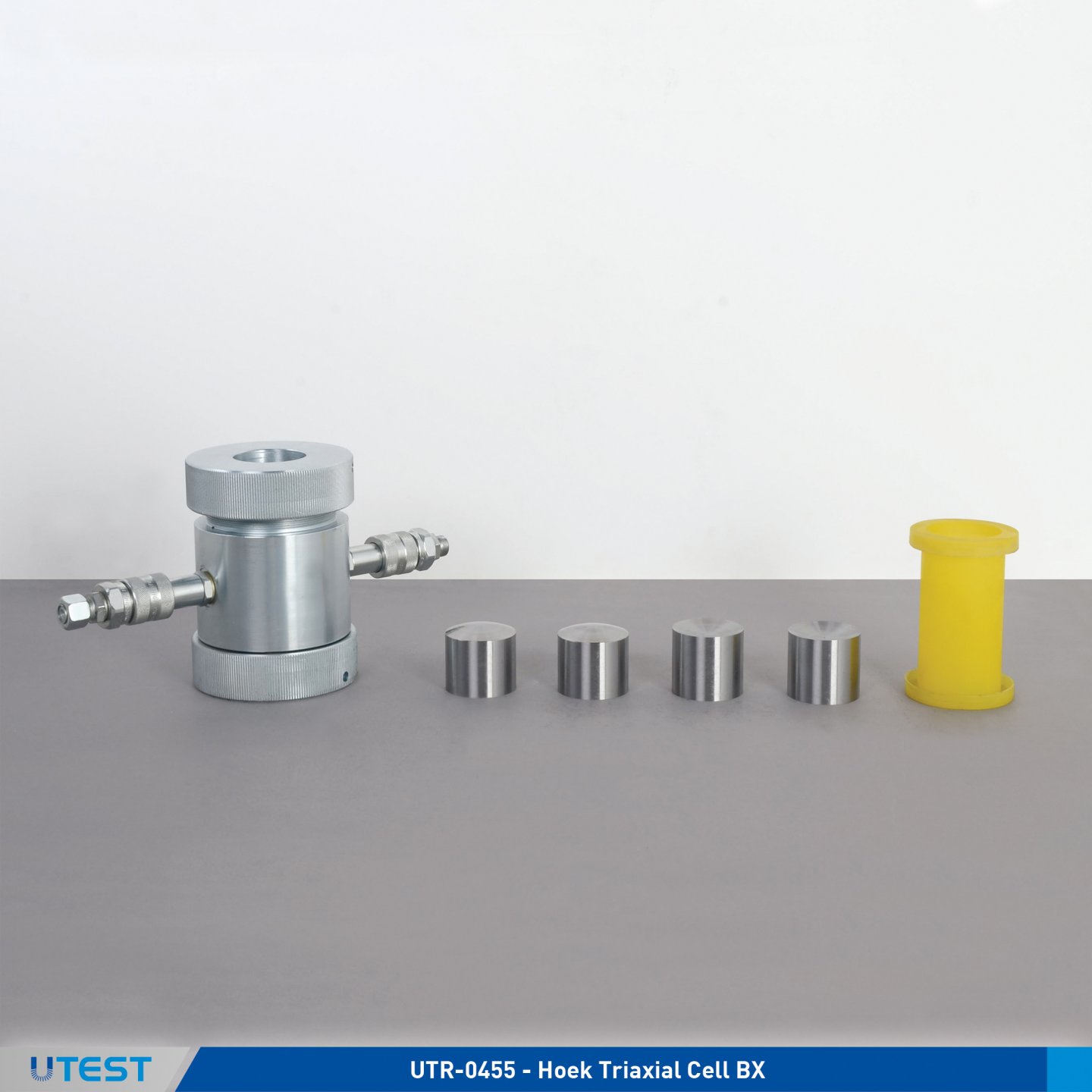

UTR-0455	Hoek Triaxial Cell BX (42.04 mm dia.)
UTR-0456	Spare Sealing Sleeves, BX (42,04 mm dia.) for Hoek Triaxial Cell
UTR-0463	Hoek Triaxial Cell NQ (47,6 mm dia.)
UTR-0464	Spare Sealing Sleeves, NQ (47.6 mm dia.) for Hoek Triaxial Cell
UTR-0457	Hoek Triaxial Cell NX (54.74 mm dia.)
UTR-0458	Spare Sealing Sleeves, NX (54,74 mm dia.) for Hoek Triaxial Cell
UTR-0460	Hoek Triaxial Cell HQ (63,5 mm dia.)
UTR-0461	Spare Sealing Sleeves, HQ (63,5 mm dia.) for Hoek Triaxial Cell

Standards

ASTM D5407; ASTM D7012

Hoek Cells comprise a steel body complete with two quick release self-sealing couplings for oil inlet and outlet, two steel hollow end caps which are screwed to the cell body, a rubber sealing sleeve, an upper and a lower loading caps with spherical coupling, an upper and a lower spherical seat pistons, two pieces end caps and two load speaders.
