Utest Material Testing Equipment

Measurement of Reinforcement Corrosion Rate

Product Code

UTC-3230            Equipment For Measurement of  Reinforcement  Corrosion Rate in Concrete

CorroMap is developed for measuring related values of corrosion rate, electrochemical potential and electrical resistance and thereby quickly assess the state of corrosion of the embedded reinforcement.

The equipment is based on Psion Work About PC with Windows CE 5.0 with colour ”touch screen”, which provides unique possibilities of fast overview and immediate treatment of data in the field

Special qualities

  • New handheld Psion Work About PC with Windows CE 5.0 and colour Touch Screen
  • Protected against dust, rain and snow (IP 65)
  • Up to 2400 automated measuremets, one-man operated with “auto trigger” and “auto increment” options
  • Can measure related values of corrosion rate, electrochemical potential and electrical resistance
  • Estimation of corrosion rate can be carried out in 15 sec.

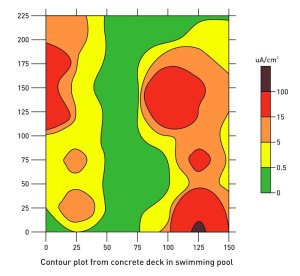

Overview for evalutation of corrosion condition

  • On site graphic display - in colour
  • Each colour represents a measurement interval for corrosion rate, potential and resistance
  • Zoom function of detail area with display of measurement values
  • Measuring results in Excel-format are easily transferred to PC for further processing and presentation
