Automatic Ring and Ball Apparatus

Product Code

UTAS-0128

Automatic Ring and Ball Apparatus,

220-240 V 50-60 Hz

UTAS-0131

Brass Ring, with Steel

Ball and Ball Centering Guides,

2 pcs.each

UTAS-0133

Ring Holder and Assembly for UTAS-0128

UTGG-1335

Borosilicate Glass Beaker 800 ml

UTGT-1305

Glass Thermometer Max. 110°C

UTGT-1315

Glass Thermometer Max. 250°C

UTGT-2050

ASTM 15C Thermometer

-2 +80°C (IP6OC)

UTGT-2055

ASTM 16C Thermometer

+30 + 200°C (IP61C)

Standards

EN 1427; ASTM D36; AASHTO T53

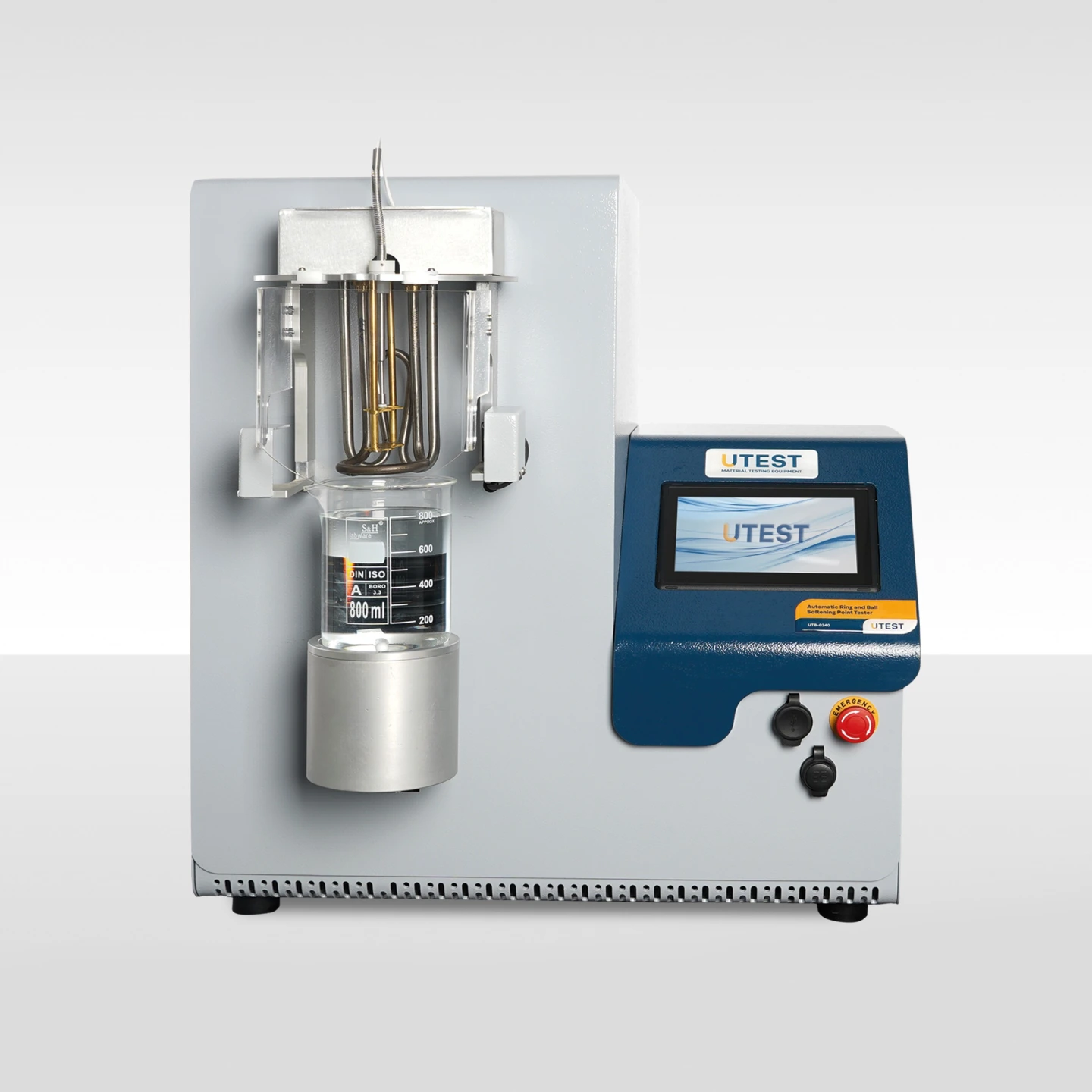

The UTAS-0128 Automatic Ring and Ball Apparatus is an innovative microprocessor controlled automatic tester which is used to determine the softening point of bituminous materials using water or glycerol as the heating fluid.

Th softening point determines a disk of the sample held within a horizontal ring is forced downward a distance of 25.4 mm under the mass of a steel ball as the sample is heated at a prescribed rate in a water or glycerine bath.

The softening point is taken by two suitably positioned light barriers and the temperature is measured by a PT100 sensor. A uniform temperature distribution in the vessel is maintained by a magnetic stirrer, equipped with an adjustable speed control system and the temperature gradient is strictly maintained during the test by the electronic system conforming to the relevant standards.

A software permits to select the test method and the test parameters, run the test automatically, store, retrieve and print data, diagnose and calibrate the instrument. Additional cooling system, permits to quickly cool down the sample allowing to handle the glassware and to perform number of tests during a day by reducing the dead times between consequent analysis.

The apparatus consists of a heater, cooling system, electric lifting system, and magnetic stirrer with speed control, temperature probe, glass beaker, ring and ball support, brass ring with steel ball and ball centering guides (2 pcs. each), light barrier system, microprocessor system and large graphic display with touch screen, RS 232 C port for PC or printer.

Dimensions

530x300x280 mm

Weight (approx.)

16 kg

Power

750 W



Main Features
  • Pyrex beaker 800 cc capacity for sample heating.
  • Microprocessor control with automatic programmable test sequences for water or glycerol
  • RS 232 serial port for connection to PC or printer
  • Colour large TFT graphic display with touch screen
  • Electric lifting system
  • PID controlled heating system
  • Cooling system with selenoid valve control
  • Magnetic stirrer with adjustable speed
  • Digital light barrier system determines exact softening point of bituminous sample
  • Software controlled system allows select test parameters, store and retrieve test results.
Firmware
  • Date/Time, operator name, test number
  • Test parameters conforming the type of test: 80°C and 80-150°C
  • Preheating temperature and thermocouple calibration for measuring the heater temperature
  • Magnetic stirrer speed adjustment from 10 to 150 rpm.
  • Baud rate selection for PC and for printer
Safety Features
  • Heater is automatically shut down at the end of the test cycle and cooling media and a solenoid valve is automatically opened by the controller.
  • Automatic test interruption when there is a probe failure or when the probe is not positioned properly
